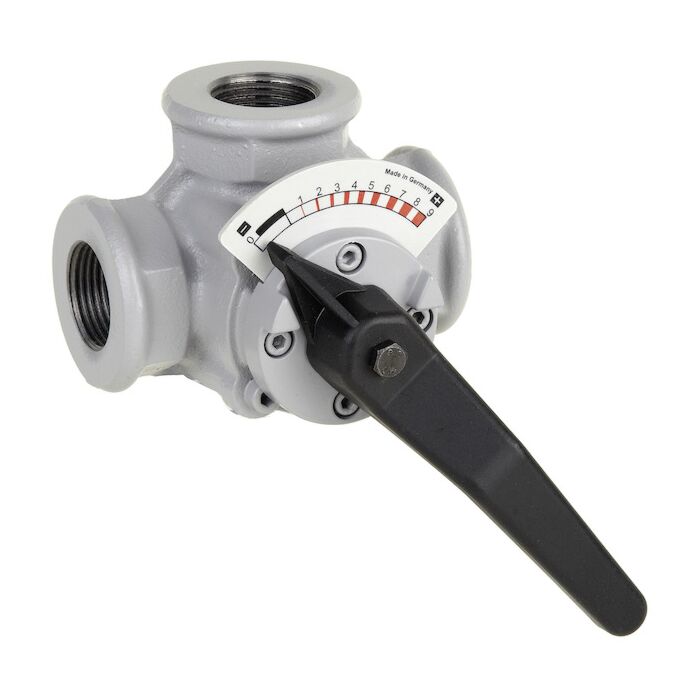

with angled passage and boiler flow that can be reversed left/right
Control curve in the chrome-plated cylinder plug (resulting in a linear temperature characteristic)
Factory setting with boiler flow from the left
Changeover by rotating the mixer shaft
Medium Water
Housing made of grey cast iron GG 20
Chrome-plated interior parts
Rotation angle 90°
Medium temperature 2-130 °C
red. Differential pressure 40 kPa
Pipe connection internal thread
