Details

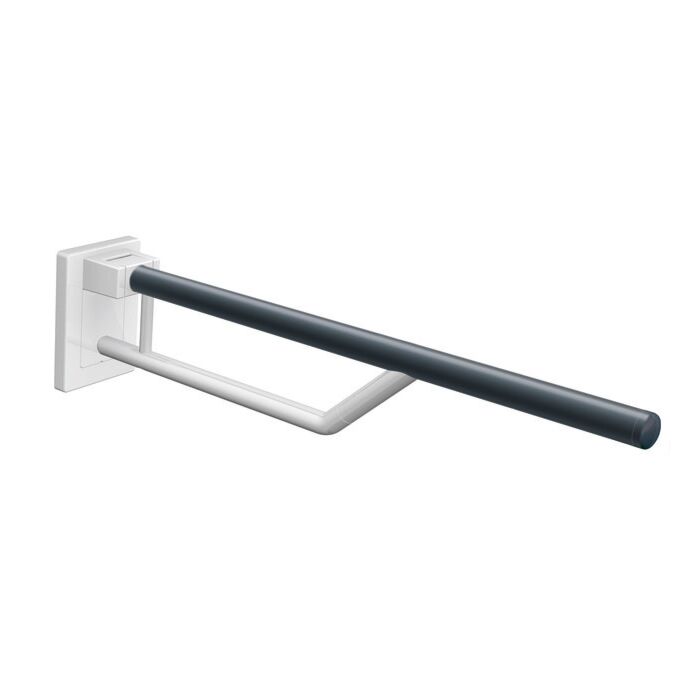

HEWI System 800 K support System 800 K Duo

  • Article number 950501209192
  • Lower spar is led to the upper spar at an angle of 135 °
  • loadable according to DIN 1040 up to 100 kg
  • can be folded up and braked down
  • with a continuous, corrosion-protected steel core
  • Integrated wall plate made of steel with cover made of high-quality polyamide
  • Wall plate 181 mm high and 130 mm wide
  • Upper spar Ø 33 mm, lower spar Ø 25 mm
  • stable three-point attachment
  • for wall mounting with concealed, corrosion-free and tested HEWI fastening material for different wall structures
  • made of high-quality polyamide

Technical Data

Technical Data
Material Kunststoff
color/ surface anthracite
length 70
product class Support / folding handle
With slip resistance No
series Duo
surface protection untreated
adjustable height No
