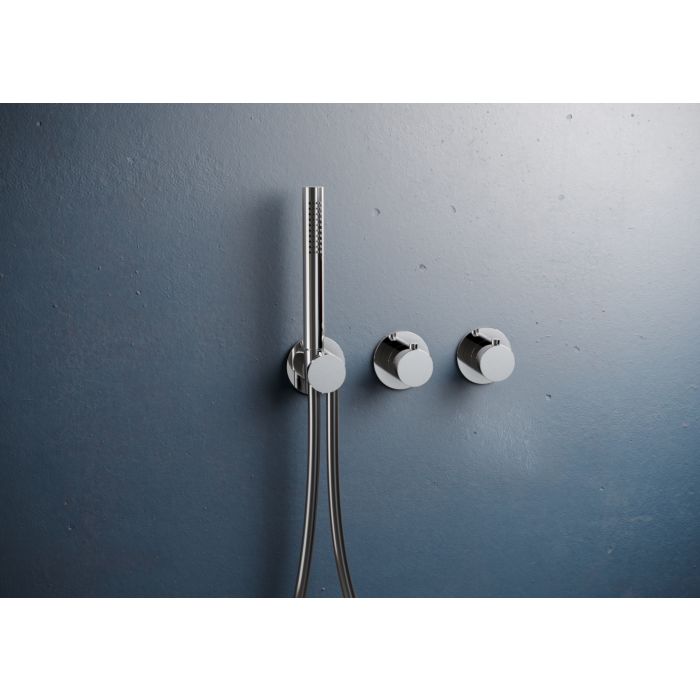

Herzbach MODUL7 thermostat finish set 70.702001.1.01 2/3 consumers chrome

herzbach MODUL7 thermostat color set for 2/3 consumers

for use in the tub/shower area consisting of:

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass control handle
-Brass module cover Ø 70 mm with outlined temperature scale

MODUL7 shut-off and diverter valve
-ceramic 2/3 way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm

Module center distance 105 mm
Min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Final assembly set for attachment to MODUL7 thermostat installation body (2 consumers > 70.720001.1.09 ; 3 consumers > 70.730001.1.09)
Chrome surface
Manufacturer herzbach / product group M7 CHROME
Item No. 70.702001.1.01
