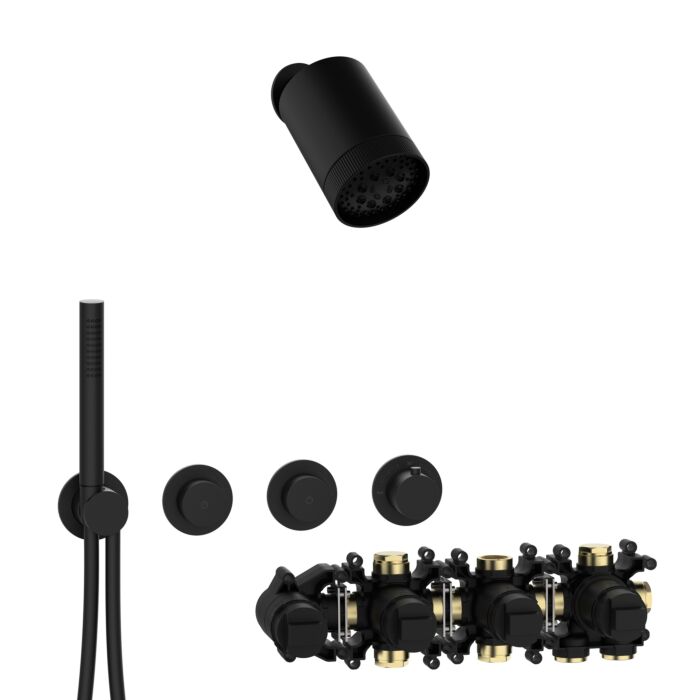

herzbach MODUL7 PUSH thermostat set P-SP3 with SPOT Multi
and hand shower for use in the shower area
SET SCOPE
70.720003.1.09 MODUL7 PUSH thermostat installation unit
70.702003.1.12 MODUL7 PUSH thermostat color set for 2 consumers
11.044286.1.12 LIVING SPA wall-mounted rain shower SPOT 102x142mm Multi
MODUL7 PUSH thermostat installation unit
-for 2 consumers
MODUL7 Thermostat
-rotatable thermostat cartridge for regulating the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass operating handle
-Brass module cover Ø 70 mm with sketched temperature scale
2 MODUL7 PUSH flow control valves
-Start + stop the water flow by pressing the PUSH flow valves
-smooth and stepless volume control with a comfortable 90° operating radius
-Brass operating handles
-Brass module panels Ø 70 mm
MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm
LIVING SPA Wall-Mounted Rain Shower SPOT Multifunction 3
-Jet types: Rain / Rain soft / Massage
-Change of jet type using the ring switch on the shower head
-Dimensions 102 mm x 142 mm
-incl. round Ø 70 mm and square 70 mm x 70 mm brass wall panel
-centered angle of inclination of the shower head 45°
-Shower head can be tilted up / down by 15°
-Clean effect
Module center distance 105 mm
min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
integrated backflow preventers and dirt strainers
intrinsically safe against backflow
Surface matt black
Manufacturer herzbach / Product group M7 SETS BLACK
Item No. 70.702723.1.12
