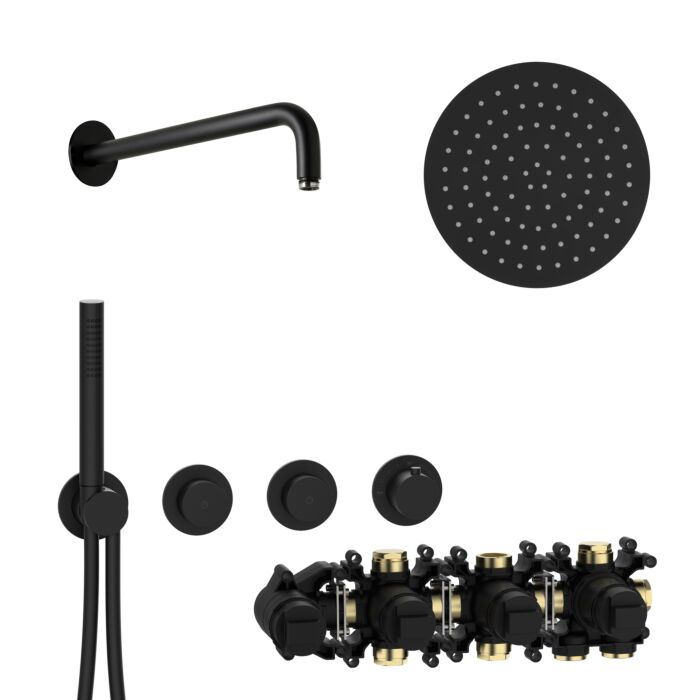

Herzbach MODUL7 PUSH thermostat set P-RB250 70.702713.1.12 wall arm rain shower 250mm matt black

herzbach MODUL7 PUSH thermostat set P-RB250 with rain shower

and hand shower for use in the shower area

SET SCOPE
70.720003.1.09 MODUL7 PUSH thermostat installation body
70.702003.1.12 MODUL7 PUSH thermostat color set for 2 consumers
23.960350.1.12 LIVING SPA wall arm 350 mm, Ø 70 mm
23.600250.1.12 LIVING SPA Slim rain shower Ø 250 mm

MODUL7 PUSH thermostat installation body
-for 2 consumers

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass control handle
-Brass module cover Ø 70 mm with outlined temperature scale

2 MODUL7 PUSH flow valves
-Start + stop the water flow by pressing the PUSH flow valves
-Smooth and infinitely variable quantity regulation with a comfortable 90° operating radius
-Brass control handles
-Brass module panels Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall arm
- Throat 350 mm
- Round angled shape
-1/2"" connection thread
-Brass cover Ø 70 mm

LIVING SPA Slim rain shower
-Diameter Ø 250 mm
-Clean effect

Module center distance 105 mm
Min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt black surface
Manufacturer herzbach / product group M7 SETS BLACK
Item No. 70.702713.1.12
