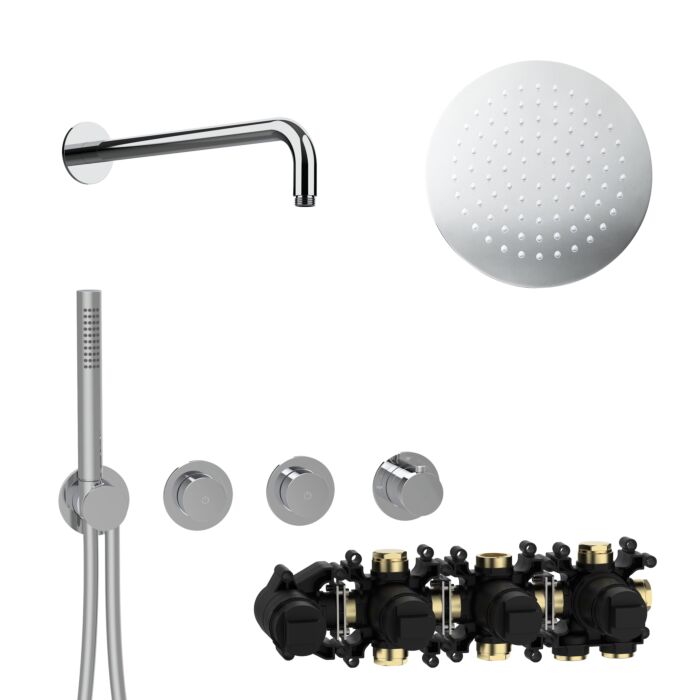

herzbach MODUL7 PUSH thermostat set P-RB250 with rain shower
and hand shower for use in the shower area
SET SCOPE
70.720003.1.09 MODUL7 PUSH thermostat installation unit
70.702003.1.01 MODUL7 PUSH thermostat color set for 2 consumers
11.960350.1.01 LIVING SPA wall arm 350 mm, Ø 70 mm
11.600250.1.01 LIVING SPA Slim rain shower Ø 250 mm
MODUL7 PUSH thermostat installation unit
-for 2 consumers
MODUL7 Thermostat
-rotatable thermostat cartridge for regulating the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass operating handle
-Brass module cover Ø 70 mm with sketched temperature scale
2 MODUL7 PUSH flow control valves
-Start + stop the water flow by pressing the PUSH flow valves
-smooth and stepless volume control with a comfortable 90° operating radius
-Brass operating handles
-Brass module panels Ø 70 mm
MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm
LIVING SPA wall arm
-Projection 350 mm
-Shaping round angled
-1/2"" connection thread
-Brass cover Ø 70 mm
LIVING SPA Slim Rain Shower
-Diameter Ø 250 mm
-Clean effect
Module center distance 105 mm
min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
integrated backflow preventers and dirt strainers
intrinsically safe against backflow
Chrome surface
Manufacturer herzbach / Product group M7 SETS CHROM
Item No. 70.702713.1.01
