Heimeier Multilux valve two-pipe system 3850-02.000 Rp 2000 / 2, 2000 , nickel-plated gunmetal
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 385002000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

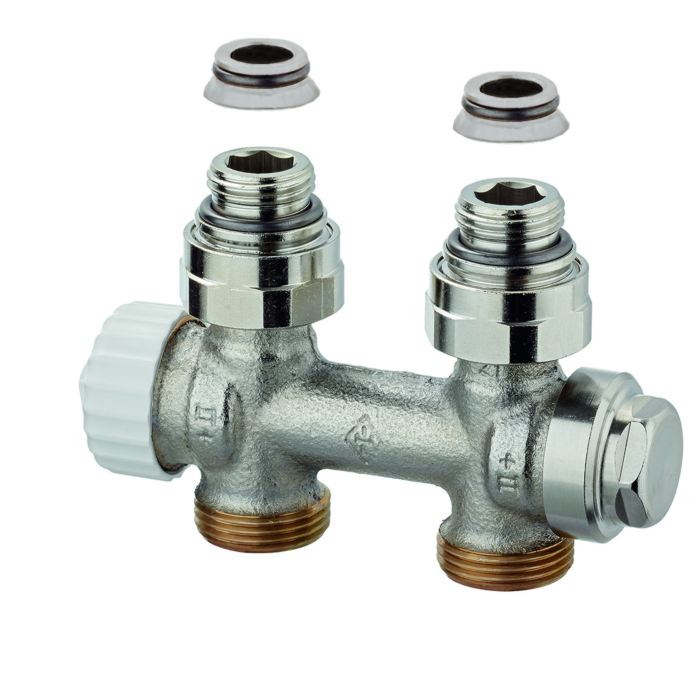

Heimeier Multilux valve two-pipe system 3850-02.000
- the Multilux thermostatic valve base is for connection to Radiators with a lower two-point connection such as bathroom radiators
- Universal radiator etc. used
- for Radiators with lower two-point connection
- Center-to-center distance of the connections 50 mm (+/- 2000
- 1930 mm)
- Housing made of corrosion-resistant
- Dezincification-free gunmetal
- nickel-plated
- with stainless steel spindle and double O-ring seal
- outer O-ring can be replaced without draining the system
- Flow and return can be shut off
- separate regulating cone for reproducible presetting
- Connection for emptying and filling device
- The flow and return connections can be selected as required
- Connection external thread G 3/4
- in connection with compression fittings for plastic
- Copper-
- Precision steel or composite pipe
- permissible operating temperature TB 120 ° C
- with cladding TB 90 ° C
- permissible operating pressure PB 10 bar
- Connection 2000 for radiator connections R 2000 / 2 of G 3/4
- Tolerance 2000 +/- 2000
- 1930 mm thanks to special union nuts and flexible flat seal system for tension-free assembly
- Connection for thermostatic heads and Actuators M 30 x 2000
- 5
