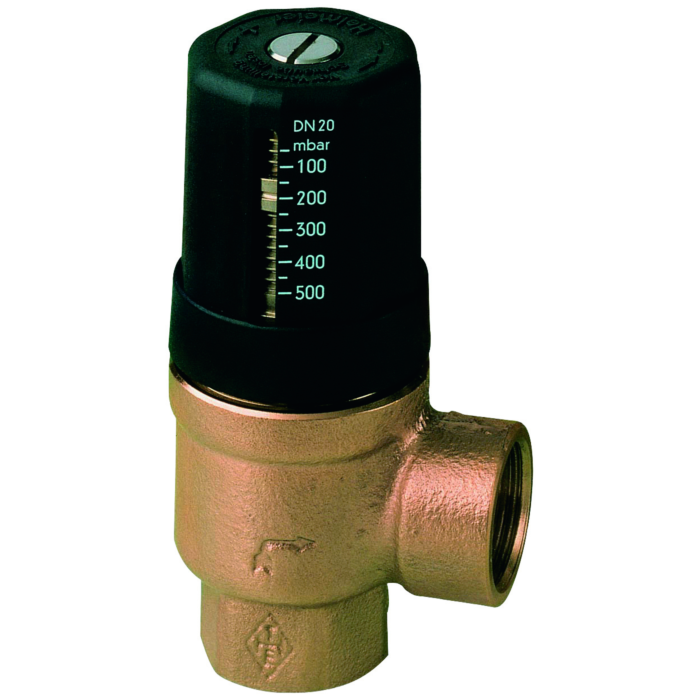

Heimeier differential pressure relief valve 5501-03.000
  • Differential pressure relief valve with directly readable setting value
  • proportionally operating differential pressure controlled overflow valve with low proportional deviation
  • Housing made of corrosion-resistant gunmetal with threads according to DIN 2999
  • directly readable setting scale
  • highest response accuracy due to internal
  • Generously dimensioned setpoint Stainless Steel from Stainless Steel
  • Low-friction central guide for the valve disc
  • Stepless adjustment secured against unauthorized adjustment
  • Setting range 50-500 mbar
  • Adjusted at the factory and preset to 200 mbar
  • Versions DN 20-32
  • Connections on the input side IG
  • IG or flat-sealing screw connection on the outlet side
  • permissible operating temperature TB 120 ° C
  • permissible operating pressure PB 10 bar (PN 16)
