hansgrohe Tecturis S single lever bath mixer 73440340
- Consists of: floor-standing single-lever bath mixer, hand shower, shower hose, shower holder
- 2 consumers
- Select pressure switch with automatic reset
- Projection: 194 mm
- Spray pattern fitting: Normal spray
- Spray pattern hand shower: Rain, MonoRain
- Maximum flow rate at 3 bar: 21 l/min
- Flow rate for bathtub inlet at 3 bar: 21 l/min
- Maximum flow rate for hand shower at 3 bar: 14 l/min
- Ceramic mixing system
- Connection size: DN15
- Connection type: Base body
- Stand assembly
- Minimum operating pressure: 1 bar
- Maximum operating pressure: 10 bar
- Flow class: O, B

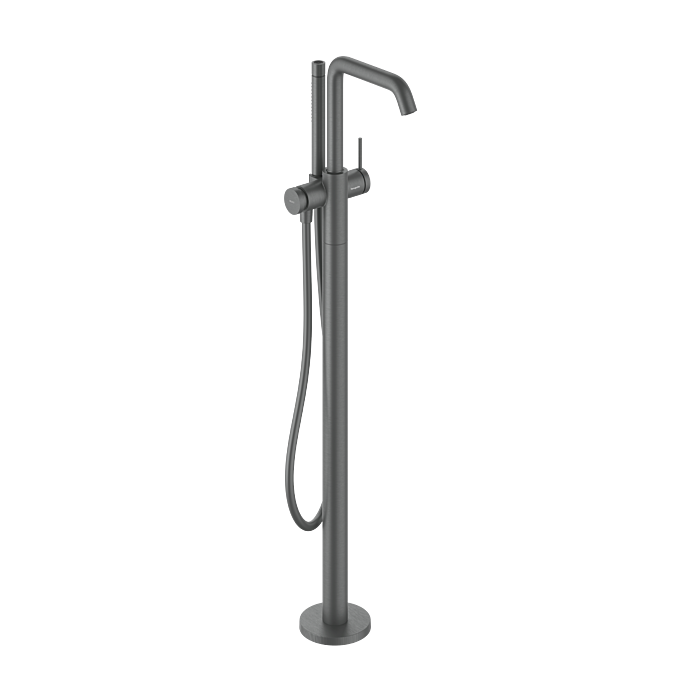

Here, water becomes an experience: Tecturis S floor-standing bath mixer in Brushed Black Chrome
With the floor-standing Tecturis S bath mixer from hansgrohe, you give water an extraordinary form. Tecturis S impresses with its purist design, featuring clean lines and rounded shapes. At the same time, the mixer combines elegant appearance with maximum comfort. This makes using water a special experience every single day.
Individual bathroom design for greater comfort
- The brushed surface in metallic black chrome underlines a sophisticated aesthetic.
- To reduce water splashing, water is mixed with air at the bathtub inlet (AirPower).
- Switch at the touch of a button: The Select button switches from bath spout to shower head.
- Automatic reset: After turning off the water, the faucet switches from shower head to bath spout.
Other special features
- Equipped with a high-quality, smooth-running ceramic mixing system from hansgrohe
- Shower head with two spray patterns: Refreshing Rain spray and focused Mono spray for wellness applications
- Extra safe: A temperature limiter, adjustable during installation, protects against excessively hot water.
- Note: A base unit (#10452180) is also required for assembly.
- 5-year voluntary manufacturer's warranty
