hansgrohe Tecturis S single lever bath mixer 73422340
- 2 consumers
- Projection: 209 mm
- Pitch: 150 ± 12 mm
- Spray pattern fitting: Normal spray
- Maximum flow rate at 3 bar: 21.4 l/min
- Flow rate for bathtub inlet at 3 bar: 21.4 l/min
- Maximum flow rate for hand shower at 3 bar: 14.7 l/min
- Ceramic mixing system
- Adjustable temperature limit
- Select pressure switch with automatic reset
- with silencer
- Suitable for instantaneous water heaters
- Connection size: DN15
- Connection type: S-connectors
- wall mounting
- Minimum operating pressure: 1 bar
- Maximum operating pressure: 10 bar

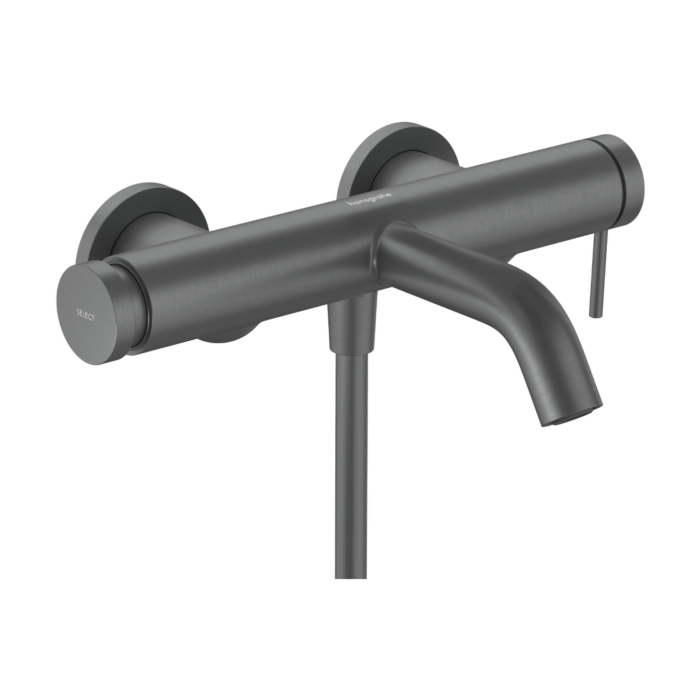

Water becomes an experience here: Tecturis S single-lever bath mixer in brushed black chrome (surface-mounted)
With the Tecturis S bath faucet from hansgrohe, you give water an extraordinary form. Tecturis S impresses with its purist design, featuring clean lines and rounded shapes. At the same time, this bath faucet combines a striking appearance with maximum comfort. This makes using water a special experience every single day.
Individual bathroom design for greater comfort
- The brushed surface in metallic black chrome underlines a sophisticated aesthetic.
- To reduce water splashing, water is mixed with air at the bathtub inlet (AirPower).
- To switch from bath to shower head, a short press of the Select button is sufficient.
- Automatic reset: After turning off the water, the faucet switches from shower head to bath spout.
Other special features
- A relaxing full bath: The tub fills up quickly at approximately 21 l/min (3 bar).
- Whisper-quiet: A built-in silencer reduces the noise of the water flow.
- Extra safe: A temperature limiter, adjustable during installation, protects against excessively hot water.
- Easy installation: Thanks to surface mounting, the wall remains undamaged. S-connectors are included (150 ± 12 mm).
- 5-year voluntary manufacturer's warranty
