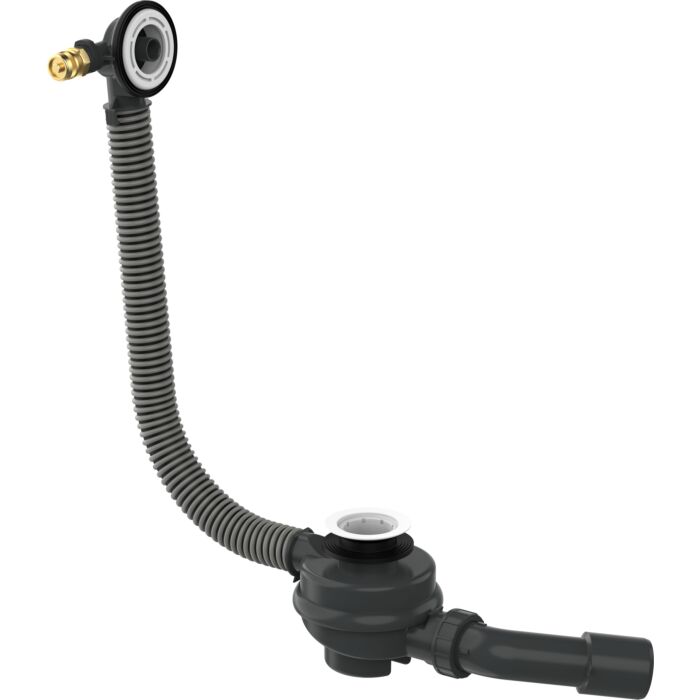

hansgrohe Exafill base unit 58152180

• consists of: base body, odor trap
• Suitable for bathtubs made of cast iron, steel and plastic, for both standard and extra-large tubs, bathtubs with a drain diameter of 52 mm
• with G ½ external thread connection
• Swivel connector, bent, diameter: 40/50 mm
• Easy installation of drain and overflow with included tool.
• Double-sided seals at outlet and overflow
• Flat design: only 46 mm are needed behind the bathtub
• Easy cleaning with access for a spiral cleaner.
• Cuttable and flexible overflow hose
• rotatable siphon housing
• Outer diameter of drain pipe: 50 mm
• Odor trap water retention height is 50 mm
• Drainage capacity at a water level of 300 mm: 64 l/min
• Overflow capacity at a water level 60 mm above the center of the overflow opening: 36 l/min
• Material: Polypropylene (PP)
• Drain fitting material: Polypropylene (PP), ABS

One for all: Universal basic set for bathtub inlet, overflow and drain from hansgrohe

The hansgrohe Tubset universal is the reliable and quick-to-install base unit for all new hansgrohe Exafill (e.g., #58119xxx) or Flexaplus trim sets (e.g., #58187xxx). It fits both large and standard bathtubs. A benefit for plumbing professionals: reduced inventory and always having the right base unit for hansgrohe trim sets on hand!

Easy to install

• Suitable for bathtubs made of cast iron, steel and plastic in various sizes
• The flexible connecting pipe between the drain and overflow can be shortened on site if necessary.
• Drain diameter 52 mm
• Flat design: only 46 mm are required behind the tub.
• Cleverly designed: The push-open mechanism eliminates the need for the otherwise usual Bowden cable.

Other special features

• Rotating siphon housing
• Water seal height 50 mm - for a secure odor seal
• Easy cleaning with access for a plumber's snake
• Rotatable, curved connector, diameter: 40/50 mm
• Replacement parts guarantee: Spare parts are available for up to 15 years after the product line is discontinued.
