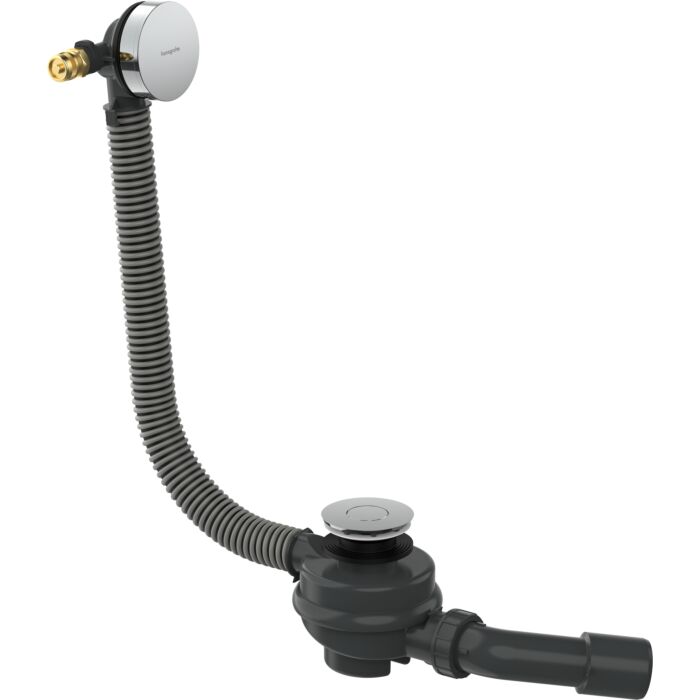

hansgrohe Exafill drain and overflow fitting 58130000
- consists of a complete overflow set with bathtub inlet
- basic body
- Drain valve
- Odor seal
- Suitable for cast iron bathtubs
- steel and plastic
- both standard and extra-large bathtubs
- Bathtubs with a drain diameter of 52 mm
- Water supply via the bathtub inlet
- Adjustable water inlet with various spray patterns
- Easy cleaning with access for a spiral cleaner.
- Connection inlet mixed water external thread
- rotatable siphon housing
- terminal connection
- Connection dimensions input G 1/2
- Swivel connector bent
- Diameter 40/50 mm
- double-sided seals at outlet and overflow
- The flat design requires only 46 mm of space behind the bathtub.
- Easy installation of drain and overflow with included tool.
- Cuttable and flexible overflow hose
- Pipe outer diameter of drain pipe 50 mm
- Water seal height 50 mm
- Drainage capacity at a water level of 300 mm: 64 l/min
- Overflow capacity at a water level of 60 mm above the center of the overflow opening: 36 l/min
- Drain fitting material: Polypropylene (PP)
- ABS
- Material overflow and inlet ABS
- Polypropylene (PP)
- Flow class O
- Noise group I
