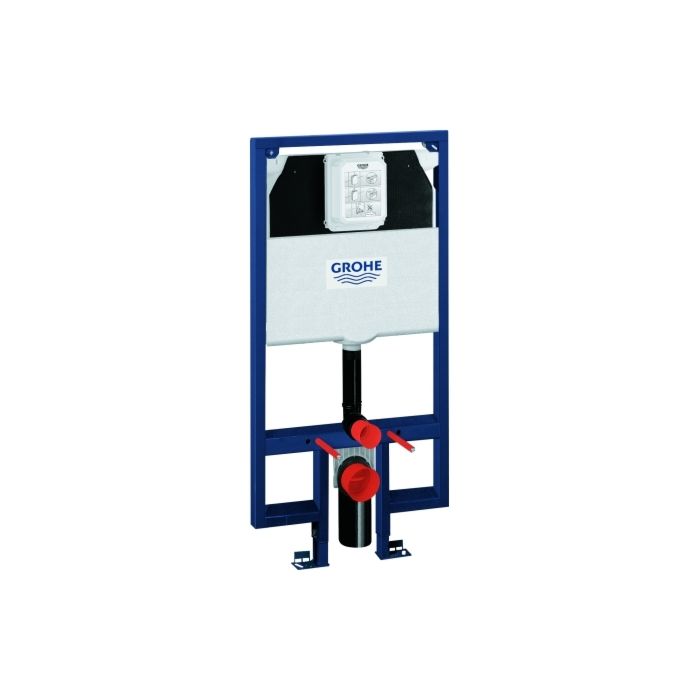

Grohe Rapid SL WC element 38994000 height 1.13 m, 62 mm, for narrow bathrooms

Grohe Rapid SL WC element 38994000
Rapid SL for wall-mounted toilets
for narrow bathrooms
cistern 80 mm
with small inspection opening
1.13 m height
element width 0.62 m
for pre-wall or stud wall mounting
steel frame, powder-coated, self-supporting
for dry cladding, completely pre-assembled
fixed object connections
for individual installation
with quick adjustment and height lock
fastening material
2 toilet retaining bolts
ceramic fixture
screw spacing 180/230 mm
PP drain bend DN 80
depth-adjustable
reducer DN 80/100
inlet and outlet fittings
cistern 80 mm, 6 - 9 l
factory setting 6l and 3l
pneumatic drain valve with three functions:
2 quantities or start & stop or non-interruptible
water connection from above or behind
fittings group I
condensate-insulated
Water connection ½" with tool-free hose connection
tool-free installation of inspection shaft with
shell protection, vertically applicable
with accessories for pre-wall mounting
Grohe EcoJoy® water-saving technology
