Details

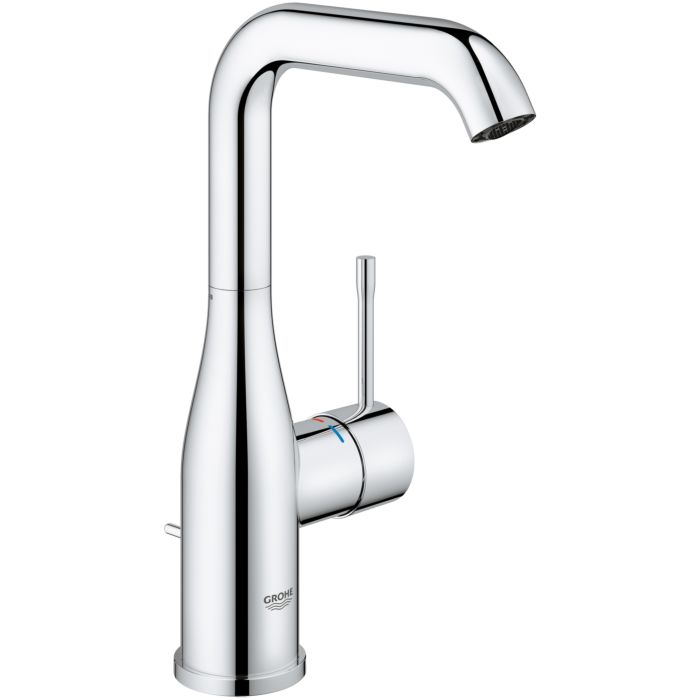

Grohe Essence basin mixer L-Size

  • Item number: 32628001
  • Single-lever basin mixer, DN 15
  • Chrome
  • With pop-up overflow set 1 1/4 "
  • Swivel spout, swivel range adjustable in 3 steps: 0 °, 150 °, 360 °
  • High spout, L-size
  • Height: 244 mm
  • Projection: 127 mm
  • Single hole mounting
  • With GROHE EcoJoy 5.7 l / min SpeedClean Mousseur, max. Water consumption at 3 bar: 5.7 l / min
  • With GROHE AquaGuide: aerator adjustable by +/- 10 ° for optimal jet alignment
  • With GROHE SilkMove: smooth-running 28mm ceramic cartridge
  • With GROHE StarLight: durable and easy to clean chrome surface
  • With GROHE QickFix Plus quick assembly system
  • With adjustable temperature limiter
  • Flexible connection hoses
  • Suitable for continuous flow water heaters
  • Fits perfectly with the GROHE washbasins

Technical Data

Technical Data
color/ surface chrome
product class Basin Mixer
Type of drain fitting with pop-up waste
Connection dimension feed 3/8 inch
Number of tap holes 1
Fitting type Single Lever
Extendable No
Mounting type Plate / tap holes
With hand shower nein
model 32628_1
Low pressure design No
series Essence
With temperature limitation Yes
Thermostat No
Water-saving position No
surface protection chrome
Material tap Brass
Connection flow Hose (screw connection)
With couplings No
closing mechanism Ceramic cartridge
center distance 0 mm
Lead outlet 127 mm
Total construction height 244 mm
Installation height of the lower edge of the tap outlet 211 mm
Discontinued model pipe
Number of handles eingriffig
With handles ja
With rosettes / cover plate Yes
Mouthpiece faucet foam jet nozzle
Execution outlet Celebration

Downloads (1)

pdf
(Size: 1.8 MB)
Produktdatenblatt Grohe Essence Waschtischarmatur L-Size 32628001
