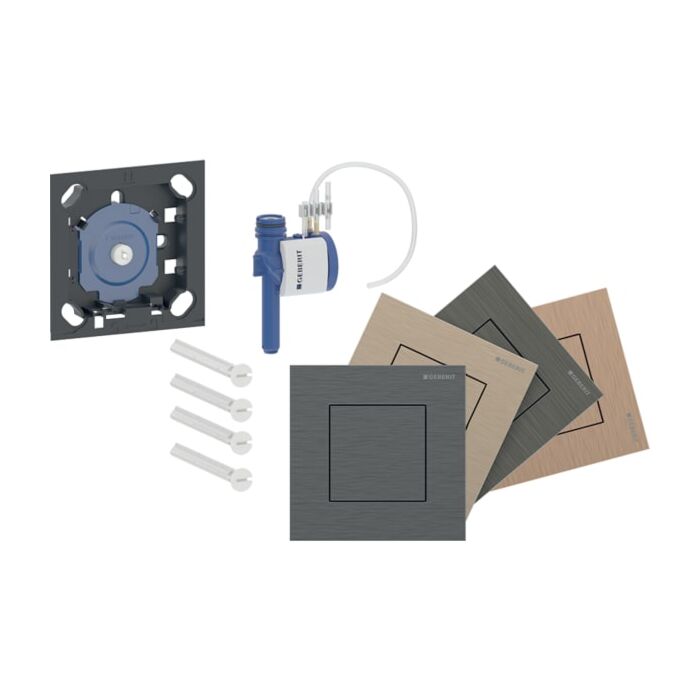

Geberit Type 40 urinal control 004781002
- for manual flushing of urinals
- for Geberit mounting elements for urinals with front actuation
- for Geberit mounting elements for urinals with top actuation
- For installation in rough-in sets for Geberit urinal controls (from year of manufacture 2009 onwards)
- Width 12.5 cm
CHARACTERISTICS
- Actuating plate with locking bolt
- Rinse time setting with air jets (pneumatic)
- Low trigger force
- Minimal lifting movement
- Flushing is triggered when the activation button is released.
- Flushing volume can be reduced to 0.5 l per flush via the throttle screw of the rough construction kit.
- Valve group II according to DIN 4109
- components in contact with drinking water are lead-free
TECHNICAL DATA
- Flow pressure 100–800 kPa
- Maximum test pressure in water: 1600 kPa
- Test pressure air / inert gas max. 300 kPa
- Maximum water temperature: 30 °C
- Actuating force (N) max. 12 N
- Flow rate at 100 kPa / 1 bar
- without flow restrictor 0.3 l/s
- Flow rate at 100 kPa / 1 bar
- with flow limiter 0.18 l/s
- Minimum flow pressure for calculation flow rate: 100 kPa
- Relative humidity = 100%
- Calculated flow rate 0.22 l/s
