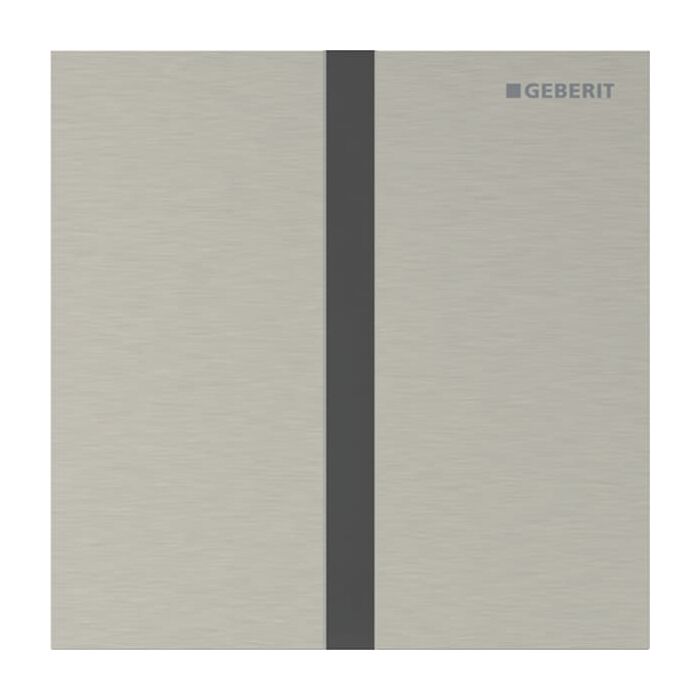

Geberit Type 40 urinal control 116237ID1
- Square
- for automatic flushing of urinals
- for Geberit mounting elements for urinals with front actuation
- For installation in rough-in sets for Geberit urinal controls (from year of manufacture 2009 onwards)
CHARACTERISTICS
- Cover plate with locking latch
- Reliable IR distance detection
- IR sensor self-adjusting
- Infrared user detection with background suppression
- Water-saving hybrid mode adjustable
- Adjustable rinse time
- Adjustable interval flushing
- Dynamic flush time adjustment
- Pre-rinse adjustable
- Convertible to operation with a lidded urinal
- One-time flush after activating the power supply
- Battery operated
- Device settings and operation via mobile device using integrated Bluetooth® interface
- Functions can be set and queried using the Geberit service mobile phone
- Compatible with Geberit Control App
- Wired networkable with Geberit Gateway via GEBUS converter
- Can be wirelessly networked with Geberit Gateway via Bluetooth®
- Compatible with Geberit Connect
- Low battery warning
- Valve closing function when battery is empty
- Flushing trigger can be deactivated
- Flushing volume can be reduced to 0.5 l per flush via the throttle screw of the rough construction kit.
- Valve group II according to DIN 4109
- components in contact with drinking water are lead-free
TECHNICAL DATA
- Battery type: Alkaline (1.5V AA)
- Battery life of included battery: 2 years
- Protection class IP45
- Operating voltage 3 V DC
- Flow pressure 100–800 kPa
- Maximum test pressure in water: 1600 kPa
- Test pressure air / inert gas max. 300 kPa
- Maximum water temperature: 30 °C
- Flow rate at 100 kPa / 1 bar without flow restrictor: 0.3 l/s
- Flow rate at 100 kPa / 1 bar with flow restrictor: 0.18 l/s
- Minimum flow pressure for calculation flow rate: 100 kPa
- Relative humidity = 100%
- Calculated flow rate 0.23 l/s
- Interval flush setting range 1–168 h
- Interval flush factory setting 24 h
- Interval flush time setting range 3–180 s
- Interval rinse time (factory setting): 5 seconds
- Dwell time setting range 3–15 s
- Factory setting dwell time: 7 s
- Rinse time setting range 1–15 s
- Rinse time (factory setting): 7 seconds
- Square key shape
SCOPE OF DELIVERY
- Type 40 cover plate, rectangular IR window
- Infrared control unit, pre-mounted on mounting frame
- solenoid valve
- Battery compartment
- 2 alkaline manganese batteries type AA 1.5 V
- Mounting hardware
