Geberit Sigma 10 WC control unit 115705166
- For manual remote activation of Sigma concealed cisterns 12 cm via support handles with Bluetooth remote control
- For manual remote activation of Sigma UP cisterns 12 cm via Geberit Bluetooth remote control
- for triggering a single flush via Sigma10 actuator plate
- for triggering a single or dual flush via Bluetooth remote control
- for solid and dry construction
- suitable for barrier-free construction
- for Sigma concealed cisterns 12 cm
CHARACTERISTICS
- Flush activation via support handle, wireless, with Bluetooth® remote control
- Flush activation via Geberit Bluetooth® remote control, wireless
- Dual flush can be triggered remotely via Bluetooth®
- Single-flush operation can be triggered via the actuator plate.
- Power supply via external power adapter
- Transformation of mains voltage to low voltage 12 V DC
- Low voltage operation, no mains voltage in the cistern
- With a foolproof plug connection
- Interval flush preset
- Adjustable interval flushing
- Device settings and operation via mobile device using integrated Bluetooth® interface
- Compatible with Geberit Control App
- Wired networkable with Geberit Gateway via GEBUS converter
- Can be wirelessly networked with Geberit Gateway via Bluetooth®
- Compatible with Geberit Connect
- Low-noise lifting mechanism
- Self-calibrating electric lifting device
- Actuator plate screwable
TECHNICAL DATA
- Protection class IP45
- Nominal voltage 85–240 V AC
- Operating voltage 12 V DC
- Mains frequency 50–60 Hz
- Power consumption in standby mode: 0.15 W
- Radio frequency 2400 MHz
- Radio range 10 m
- Interval flush setting range 1–168 h
- Interval flush factory setting 24 h
- Interval flush time setting range 1–200 s
- Interval rinse time (factory setting): 5 seconds
- Round key shape
SCOPE OF DELIVERY

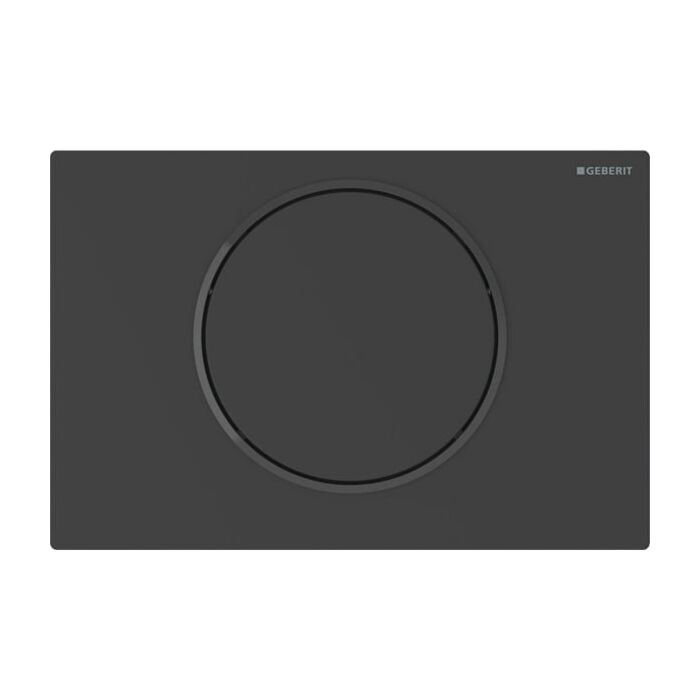

- Sigma10 actuator plate
- Mounting frame
- protective plate
- Push rod
- Bearing block with servo motor and lifting device, pre-assembled
- Control electronics with Bluetooth® receiver
- Mounting hardware
