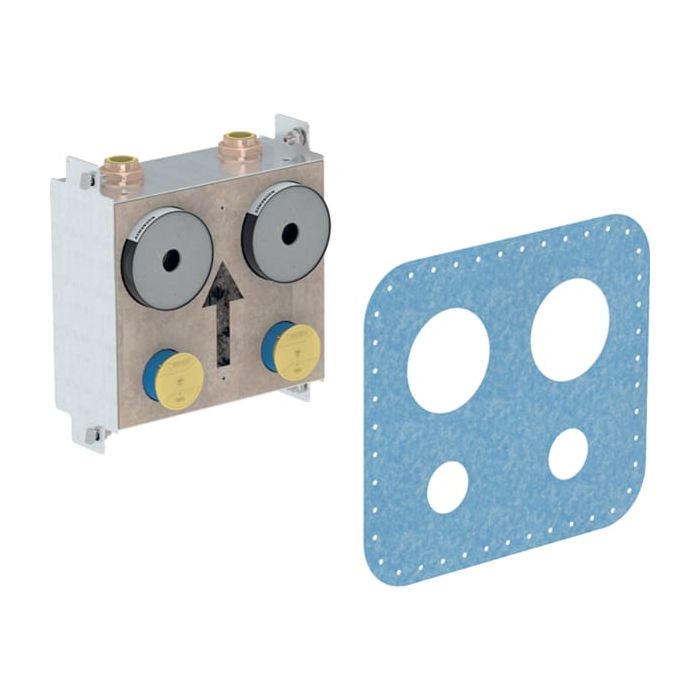

Geberit Gis water meter block 461131001
- foamed
- for installation in GIS support systems for pre-wall
- partition wall or free-standing wall
- for installation of two measuring capsules with thread KOAX G 2
- for planking thicknesses of 18 - 25 mm
- for use in moisture exposure classes 0
- A0 and A1 (building-regulated area)
- for installation in GIS support systems with fire protection requirements
- for installation below GIS elements for washbasin
- galvanized frame
- frame with four quick fasteners
- continuously height-adjustable in the GIS structure
- 2x measuring capsules KOAX G 2 can be fitted
- water meter section made of gunmetal
- Rp 3/4
- Overflow caps pre-assembled in measuring capsules
- with concealed ball valve Rp 3/4
- thermally insulated
- Installation box can be painted and tiled
- Moisture protection through sealing sleeve
- two rotary handles for shut-off valve
- plastic
- two construction protections for water meters
- with sealing sleeve
