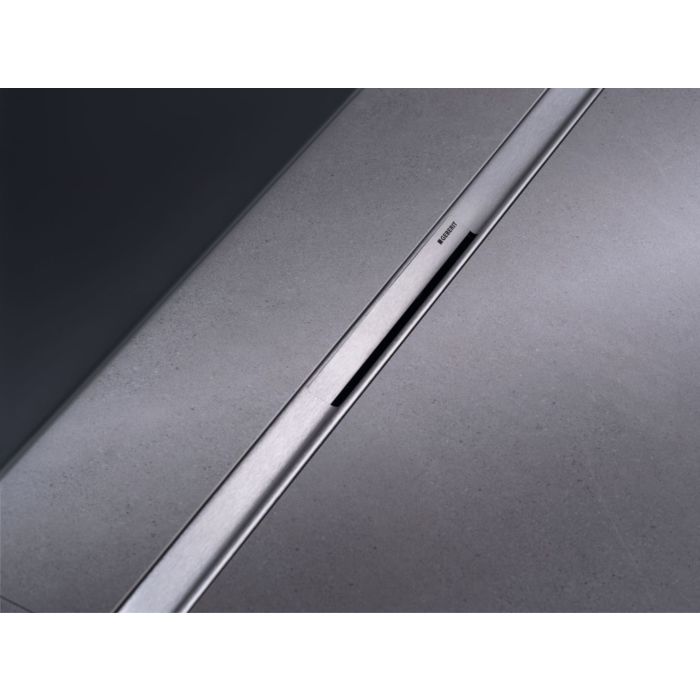

Geberit CleanLine50 Shower Channel, Brushed Stainless Steel
· Item number: 154447KS1
· Length: 30-130 cm
· Width: 3 cm
· Height: 1 cm
· Material: CrNiMo steel 1.4404
Features
· Quality-controlled according to EN 1253-3
· With integrated gradient
· Shower channel can be cut to length
· With anti-fingerprint coating
· Suitable for tile installations on floors from 10-35 mm
· Shower channel height, inclination, and offset adjustable
· Easy to clean
· Water drainage above the composite waterproofing
· Water drainage above the finished floor when using the collar
· Drainage capacity 0.4 l/s when using the rough-in set with
· Water seal height 30 mm and screed height 65 mm at the inlet
· Drainage capacity 0.6 l/s when using the rough-in set with a 50 mm trap height and a 90 mm screed height at the inlet
· Drainage capacity 0.8 l/s when using the rough-in set with a 50 mm trap height and a 140 mm screed height at the inlet
· Drainage capacity 1 l/s when using the rough-in set with a 50 mm trap height and a 200 mm screed height at the inlet
Use
· for draining floor-level showers
· for installation in the room
· for installation in thin-bed mortar
· for composite waterproofing
· suitable for accessible construction
Scope of delivery
· Comb insert
· Inlet nozzle with compensation ring
· Suction cup
· Sleeve
Not included:
Rough-in set for Geberit CleanLine shower channels
