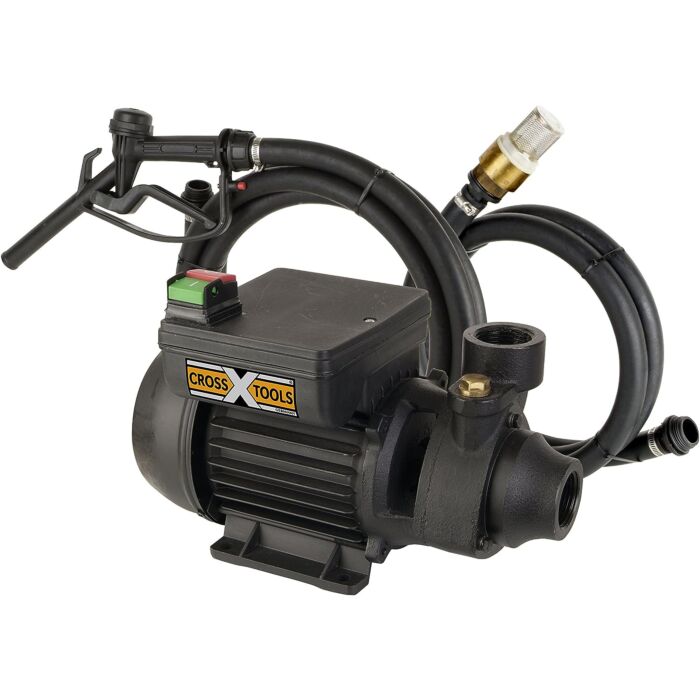

CROSS TOOLS fuel pump 68800
Discover the versatile MultiOil 35 M fuel pump – your reliable support in numerous situations!
Versatile application: This pump is ideal for transporting various fuels, including heating oil, rapeseed oil and diesel fuels. Whether for refueling vehicles or filling and emptying heating oil tanks, the MultiOil 35 M is a versatile tool for various applications.
High-quality construction: The pump housing is made of robust cast iron and features a high-quality brass impeller, ensuring long life and reliable performance. The cast iron pump housing and tungsten carbide shaft seal ensure durability and reliability.
Complete set: The delivery includes a fuel-compatible, flexible intake and dispensing hose with a nozzle and a brass foot valve. So you have everything you need for your tasks.
Safe and adaptable: This fuel pump is adjustable to suit different local conditions and different pumping liquids. However, please note that it is not suitable for pumping highly flammable liquids.
Powerful motor: The maintenance-free capacitor motor has thermal overload protection and delivers a motor power of 550 watts at a maximum delivery head of 35 m / 3.5 bar.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
The MultiOil 35 M fuel pump – your reliable peripheral pump for a variety of tasks.
Scope of delivery:
- fuel pump
- 2 m suction hose with brass foot valve
- 4 m dispensing hose with nozzle (without automatic shutdown)
- connectors
- hose clamps
- sealing rings
Technical data:
Mains voltage / frequency: 230 V~ / 50 Hz
Motor: 550 watts
Delivery head / pressure max.: 35 m / 3.5 bar
Flow rate max.: 2,100 l/h | 35 l/min
Suction height max.: 5 m (not self-priming)
Pump housing: cast iron
Impeller: Brass
Pressure connection: 30.93 mm (1" IG)
Suction connection: 30.93 mm (1" IG)
Connection cable: 1.5 m / H07RN-F
Weight: 10 kg
Protection class: IPX4 Delivery rate and delivery head:
30 m – 3.5 l/min
20 m – 11.0 l/min
10 m – 21.5 l/min
5 m – 27.5 l/min
1 m – 34.0 l/min
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water outlet. The table above shows the performance of the MultiOil 35 M fuel pump at different delivery heads. For example, with a delivery head of 1.0 meters, this pump can expect a delivery rate of 34.0 liters per minute.
