- for installation in basement windows or draught shafts for burner-controlled oxygen supply
- consisting of impact-resistant plastic housing with molded mounting flange and counter flange with protective grille and gear motor for operating the slide
- with manual operation and function display
- Housing plastic (ABS)
- 260x300x115mm
- 1 kg
- Protection class IP20 (EN 60529)
- Mounting opening 216 x 166 mm
- Fresh air cross-section 150 cm²
- Supply voltage AC 230 V
- Contact load AC 250 V/2 A
- Burner output max. 50 kW
- For larger systems, several Air-Control room air dampers can be installed

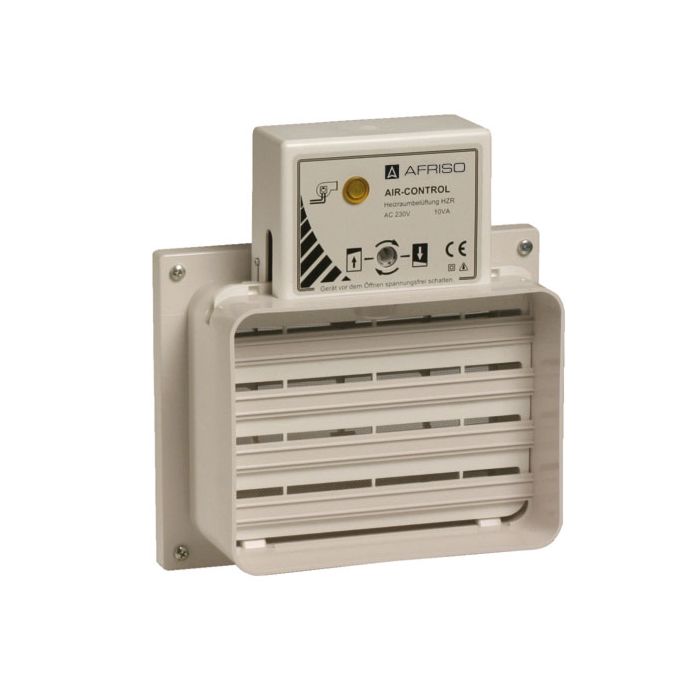

Afriso room air damper 69964 for boiler rooms with oil/gas fireplaces up to 50 kW
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 69964
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Afriso room air damper 69964
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
