- for closed heating systems according to EN 12828 up to a capacity of 50 kW
- consisting of dashboard
- Heating pressure gauge to display the system pressure
- Quick vent with Aquastop and diaphragm safety valve MS in an insulation
- with self-sealing assembly valve for replacing the quick vent
- Boiler connection G 1 IG
- Temperature range max. 120 °C
- 183x144x70mm
- Insulation Polypropylene EPP
- Brass fittings
- Diaphragm safety valve MS (inlet x outlet: G 1/2 x G 3/4
- PTFE seal rotatable
- Response pressure 3 bar)
- Display range 0/4 bar
- Diameter 63 mm-G 1/4 wheel
- Quick vent inlet G 3/8 (nominal pressure 12 bar)

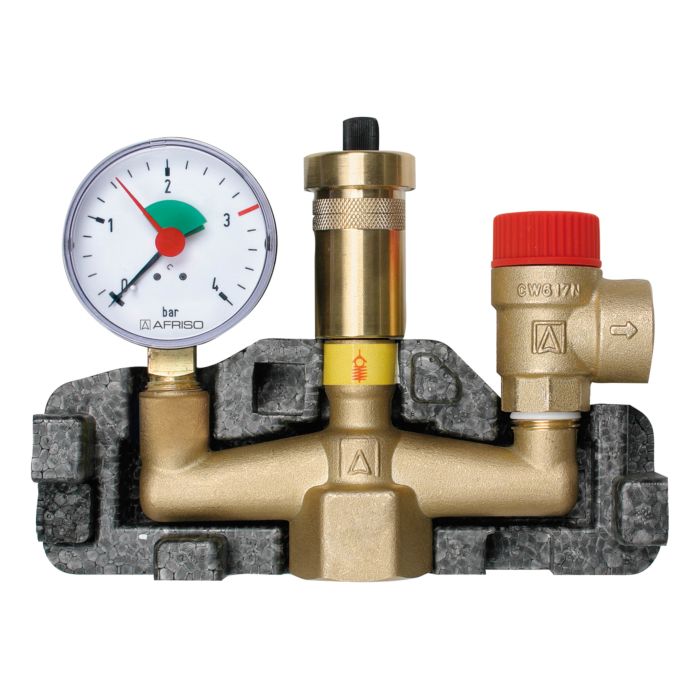

Afriso boiler safety group 77938 3 bar, with insulation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 77938
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Afriso boiler safety group 77938
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
Downloads (2)
Product Safety
Manufacturer
AFRISO-EURO-INDEX GmbH
E-Mail
info@afriso.de
Address
Lindenstraße 20
74363 Güglingen
Germany
